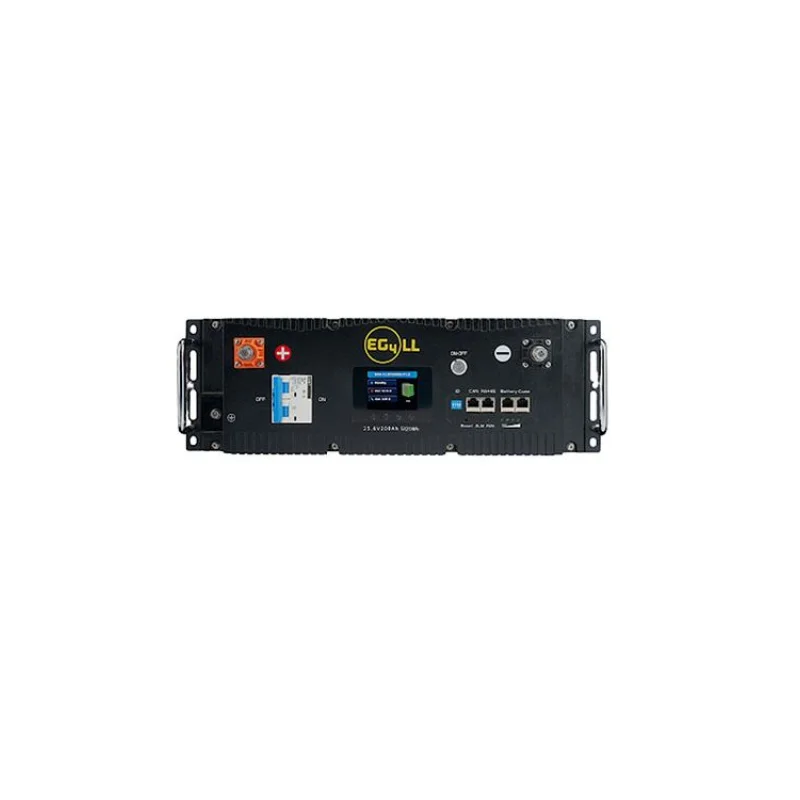

EG4 LL Lithium Battery (V2) | 24V 200AH | Server Rack Battery
Discover unmatched performance and durability with the upgraded EG4 LL 24V 200AH Battery. Designed to withstand over 7,000 deep charge and discharge cycles at 80% Depth of Discharge (DoD), it offers a lifespan of more than 15 years. Equipped with a robust 200A built-in BMS, this battery supports high-power charge and discharge capabilities and is backed by a 10-year warranty. With a 5.12kWh storage capacity, it includes dual onboard fire arrestors for enhanced safety in high-risk environments.
Stay informed with real-time battery statistics via Bluetooth connectivity, accessible through a dedicated app and PC monitoring software. Additionally, an integrated LCD touchscreen provides at-a-glance monitoring. The battery supports closed-loop communications with multiple inverter brands and allows for parallel connections of up to 16 units, delivering a maximum system capacity of 81.9kWh while maintaining seamless BMS communication.
Includes: (1) 1 foot RS485 Communication Cable and (1) Set of Parallel Cables per battery. (1) RS485 USB Battery Comm Cable PER (6) BATTERIES
EG4 LL Lithium Battery 24V 200Ah Specs & Features
- Voltage: 25.6V
- Capacity: 200Ah
- Dimensions: 6.1 in.19 in.20.2 in
- Weight: 99.2 lbs
- Design Life: +15 Years at 80% DoD
- Communications: RS485/CAN: Schneider, Sol-Ark, Victron, Growatt, EG4
EG4 LL Lithium Battery Features
- Rated for 7000 deep charge & discharge cycles
- 15-year life with 80% depth of discharge daily, designed for up to 20-year life
- Tier One, A+ Cell Composition, 99% Efficiency LiFePo4 16-Cell Pack
- Dual Onboard automatic fire arrestors
- Failsafe operation in high-risk environments and to protect against rare hardware failure on high voltage solar charge controllers
- Enable expanded communication for existing V1 EG4-LL Battery Banks by using a new V2 EG4-LL Battery as your master battery
- Parallel up to 16 batteries
- On-board LCD Screen
- PC Monitoring Software
- Lifetime firmware updates
- Dual On-board Fire Arrestors
- Environmentally Friendly & Lead-Free
Your Satisfaction with EG4 is Guaranteed:
- 10-Year Limited Warranty
- Lowest Price Guarantee
