Description

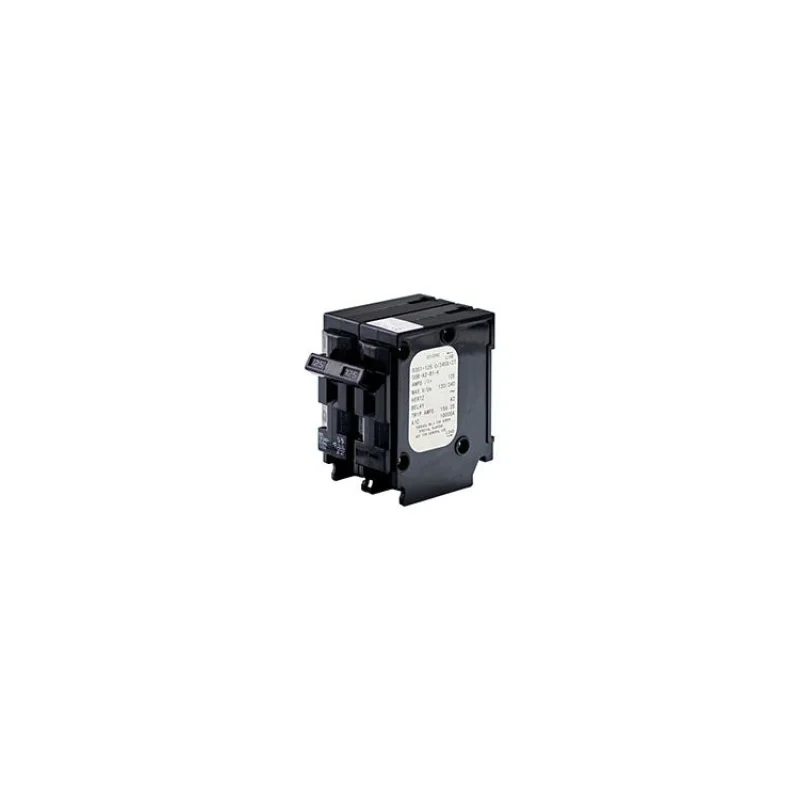

BSB 125A AC Circuit Breaker
The 125A AC Circuit Breaker delivers dependable overload and short circuit protection for electrical systems. Built for versatility, it is ideal for residential, commercial, and industrial applications, ensuring reliable performance in demanding environments.
EG4 BSB 125A AC Circuit Breaker Specs and Features
- Suitable for systems with a current rating of up to 125A.
- Designed for electrical systems with a rated voltage of AC 120/240V.
- Built to withstand harsh environments with a working temperature range of -40C to +85C.
- Features trip-free operation, indicating handle, and high interrupting capacity..
- Meets standards GB/T 14048.2 / IEC 60947-2, UL489.
- Rated Insulation Voltage: 500V
- Rated Impulse Withstand Voltage: 4kV
- Electrical Lifecycle: 6000 cycles
- Mechanical Lifecycle: 10000 cycles
- Interrupting Capacity: Up to 10,000A
- Torque Range: 2.8 – 6.8 N.m
- Protection Features: PV Reverse Polarity, Over-Voltage, and Surge Protection
