Description

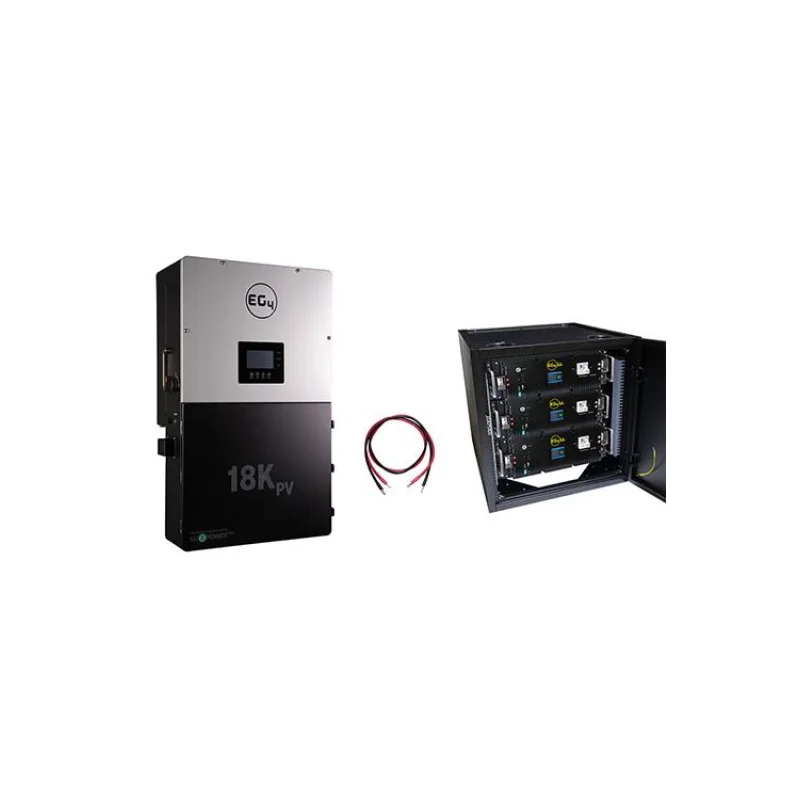

EG4 18KPV Hybrid Inverter System Bundle with 15.36kWH EG4 Lithium Powerwall
The EG4 18kPV Hybrid Inverter System Bundle is a powerful, all-in-one solar energy solution designed for seamless integration of solar, battery storage, and grid power. This bundle includes the high-performance EG4 18kPV Hybrid Inverter paired with a 15.36kWh EG4 Lithium Powerwall, delivering reliable, efficient, and scalable energy storage for homes, RVs, and off-grid applications.
Bundle Includes: 1 x 1 x EG4 18kPV Hybrid Inverter | All-In-One Solar Inverter | 18000W PV Input | 12000W Output | 48V 120/240V Split Phase, 1 X (Pre-Assembled) EG4 Enclosed Battery Rack | 3 Slot | Wheels Included, 2 X 96in 2/0 AWG Battery to Inverter Cables | Black and Red, 3 x EG4 LL-S Lithium Battery | 48V 100AH | Server Rack Battery
EG4 18KPV Hybrid Inverter System 15.36kWH Bundle Specs
EG4 LL-S Lithium Battery | 48V 100AH | Server Rack Battery Specs
- Nominal Voltage: 51.2V
- Nominal Capacity: 100AH
- Kilowatt-hour(s): 5.12kWh
- Dimensions: 6.1 19 17.4 in.
- Design Life: *15 Years at 80% DoD
EG4 18kPV Hybrid Inverter Specs
- Nominal AC Voltage: 120/240VAC; 120/208VAC
- Frequency: 50/60Hz
- Max AC Current: 50A @ 240VAC
- Max AC Input Power: 12000W
- Max Output Current: 50A
- Dimensions: 34.320.511.2 in
- Weight: 121.25 lbs
EG4 18KPV Hybrid Inverter System 15.36kWH Bundle Features
- 18,000W PV input, 12,000W continuous output
- Stackable – Parallel multiple units together
- Closed loop communication with EG4 batteries
- Overload, short circuit & over temperature protection
- Line Balancing
- Simple plug-and-play install and inverter management
- Manages power from energy storage systems, and grid simultaneously
- 120/240V split phase
- Fully outdoor rated (Avoid direct sunlight)
- Remotely Monitor & View Your System
- View solar yield, battery charging/discharging rate & import consumption
- Displays live energy data, battery charge and discharge limitations, and battery warning or fault.
- View the power curve from each day
- Displays key parameters over a 24-hour period
- Get historical data about your system for analysis and maintenance
- Update firmware remotely anywhere at anytime
Your Satisfaction with EG4 is Guaranteed:
- 10-Year Limited Warranty
- Lowest Price Guarantee
