Description

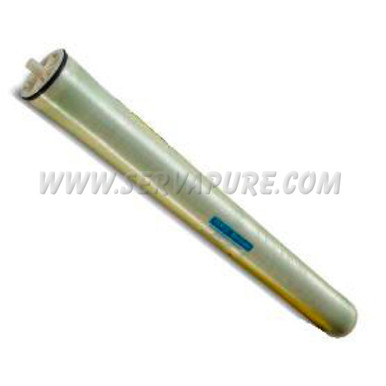

Dow Filmtec SW30-2521 membrane elements have on of the highest flow rates available to meet the water demands of both sea-based and land-based desalinators. Dow Filmtec SW30 elements may also be operated at lower pressure to reduce pump size, cost, and operating expenses.
– Model: SW30-2514– Diameter: 2.5″– Length: 21″– Hard fiberglass outer shell– Applied Pressure: 800 PSI– Nominal Capacity: 300 Gallons Per Day– Maximum Pressure: 1000 PSI– Weight: 5 lbs– Stabilized salt rejection: 99.4%– 28 mil feed spacer– Max. Operating Temperature: 113°F (45°C)– Max Feed Flow Rate: 6 GPM– Max Pressure Drop: 15 PSI– 13.0 ft2 of active membrane surface area– May Be cleaned over the widest pH range (pH 1-13) for the most effective cleaning
Used In:– Seawater desalination– Marin (yacht) applications
Advantages:– High flux reduces energy used and pressure required– Good rejection provides good water quality – Filmtec performance and quality
