HYDRAULIC BRAKE

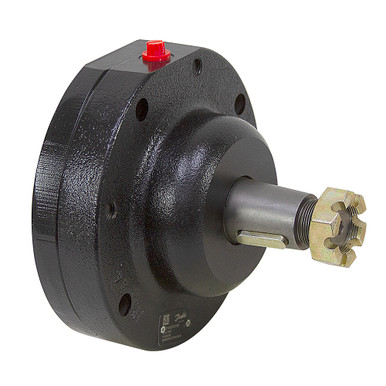

New. DANFOSS 925650K3031AAAAAS hydraulic brake. Shaft length measurement is measured from back mounting face to end of shaft.
SPECIFICATIONS
- Holding Torque 5750 in. lbs.
- Release Pressure 290 PSI
- Max Pressure 3,000 PSI
- Release Volume 0.55 cu.in.
- Speed 250 RPM max.
- Shaft 1-1/2″ tapered dia. x 5.925″ long w/ 5/16″ keyway and 1-1/8″-18 threaded w/ castle nut
- Port SAE 4
- Mount Four, 0.53″ holes on 6.25″ B.C. w/ 4″ pilot
- Size 7″ x 7″ x 6.25″
- Shpg. 26 lbs.
