Description

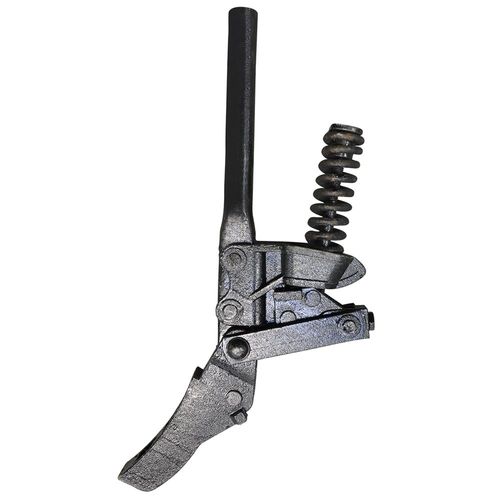

This cultivator shank is made to fit International Harvester. This cultivator shank fits Farmall International 100, 130, 140, Cub and Super A models. The cultivator shank has the following dimensions: 20 inches tall, 1-3/16 inch rod shaft, 5-1/2 inches long spring that is 1-5/8 inches in diameter. The spring has a nut on top where you can increase or decrease the tension of the kickback load in case you hit a rock or a root. This cultivator shank is able to have sweeps from 4 to 30 inches used on it. Agri Supply® stocks large selections of replacement parts to fit OEM tillage equipment.
Specifications
- To attach this chank to the toolbar use ASC 109931 & ASC 85136
- A washer is needed for each bolt used to attach the sweep use ASC 13086
- To attach sweeps with bolts and nuts, use ASC 32647
- Adjusting Bolt With Nut For Cultivator Shank, ASC 84764
- Spring For Cultivator Shank, ASC 84765
- Spring Bolt for Cultivator Shank, ASC 84766
- Large Threaded Nut for Top of Spring on Cultivator Shank, ASC 84767
- Distance between mounting holes: 1-3/4″ center to center
- Hole size: 1-1/16″ square
- Other dimensions: 6.5″ diagonally
- Choose the sweep that best fits your needs to attach to this Trip Shank from the links below:
- Row Crop Sweeps, Chisel Plow Sweeps, Field Cultivator Sweeps, Peanut Sweeps
