Description

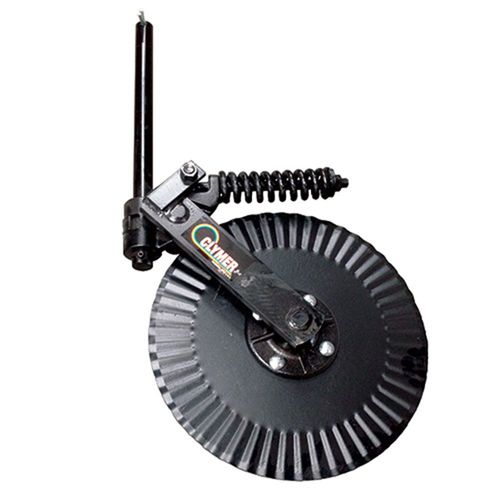

This coulter assembly is perfect for the grower looking to cut through the trash and get right to the heart of your fertilizer needs.These coulter assemblies are also great for no till planting and can be used in conjunction with a bedder. The Clymer Coulter assembly is manufactured of strong dependable high quality ductile castings with nylon bushings at pivot points and a 1-1/2 inchhi-tensile steel shaft.This coulter is not only durable but also versatile as it mounts on most implements and toolbars. With the wide variety of available blades, this coulter assembly will ease your workload.
Specifications
- Clymer N347 coulter assembly
- High quality ductile castings
- Nylon bushings at pivot points
- Spring loaded, 500 pound preload down pressure, 1200 lbs. max
- 1-1/2 Inch hi-tensile steel shaft
- Bearings in hub pre-greased at the factory
- Special seal on hub to prevent dirt and water from getting into bearings
- Mounts on most implements and toolbars
- Injections system available ASC 39540.
Replacement Parts
- 17939 – LM-67010 Tapered Roller (2 needed)
- 17940 – Tapered Roller Cone (2 needed)
- 27830 – Grease Seal for Hub (1 needed)
- 25681 – Dust Cap
- 43984 – Coulter Blade
Mounting Instructions:
When mounting to a 4″ x 4″ toolbar, use the following:
- 2 of 48099 u-bolt
- 1 of 38009 – clamp
- 2 of 42878 – clamp
When mounting to a 4″ x 6″ toolbar, use the following:
- 2 of 38012- u-bolt
- 1 of 38010 – clamp
- 2 of 42878 – clamp
When mounting to a 5″ x 7″ or 7″ x 7″ toolbar, use the following:
- 2 of 38013- u-bolt
- 1 of 38010- clamp
- 2 of 42878 – clamp
Injections system available ASC 39540. For replacement coulter use ASC 34296A
