Description
Micrograin carbide chamfer bit is ideal for creating 45° chamfers on boards and panels that provides a unique look to a finished work piece. Tip is ground on specialized CNC equipment for premium quality. Fully hardened and tempered steel shank is highly durable for frequent classroom use. Includes a compact ball-bearing pilot and control cut design that minimizes kickback. Edge has a smooth radius so the work piece won’t require much sanding, if any, before finishing.
- Produces 45° chamfers on boards and panels
- Control cut design helps minimize kickback
- Micrograin carbide tips provide superior wear resistance and long life
- Compact ball-bearing pilot guides bit along edge of material

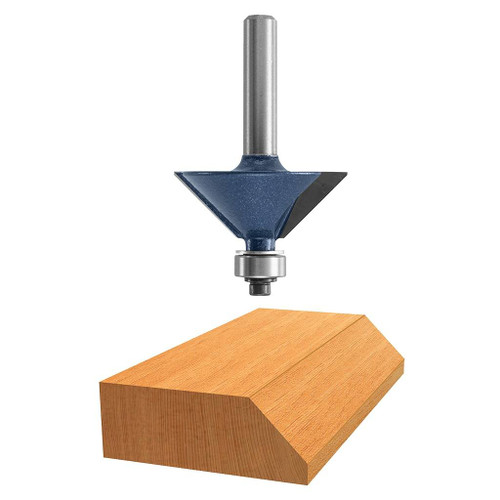

Carbide-Tipped Chamfer Bit: 1-5/16″ x 2-3/8″
Overall Diameter: 1-5/16″
Cutting Edge Length: 1/2″
Shank Diameter: 1/4″
Overall Length: 2″
Bearing Diameter: 3/8″
Angle: 45°
Flute Length: 0.5″
Number of Flutes: 1
