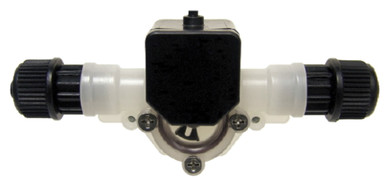

Description
Sensor Only
115V Model with 1/4″ OD Tubing connections and clear PVC lens
Micro-Flo Features
– Three model variations
– FS = Sensor-mounted display
– FP = Panel-mounted display (includes 6 ft. cable)
– FV = No display; sensor only; 5 VDC current-sinking output (includes 6 ft. cable)
– Infrared light sensor
– 6-Digit LCD with up to 4 decimal positions
– Displays both flow rate and total accumulated flow
– Digital pulse output (2-wire)
– Open-collector output alarm setpoint
– User selectable or custom programmable scale factors
– Flow units: gallons, liters, ounces, milliliters
– Time units: minutes, hours, days
– Volumetric field calibration programming system
– Non-volitile programming and accumulated flow memory
– Total reset function can be disabled
– Clear PVC viewing lens or PVDF chemical-resistant lens
– Weather-resistant Valox (PBT) enclosure, NEMA 4x
– LCD not recommended for direct sunlight applications- Previous Part Number: FV1-200-4V
Micro-Flo Specifications
| Adapter size | 1/4″ OD Tubing |
| Low Flow Reading | 3.5 OZ/MIN (100 ML/MIN) |
| High Flow Reading |
35 OZ/MIN (1000 ML/MIN) |
| Max Working Pressure |
PVC Lens: 130 PSI (9 Bar) @ 70°F (21°C) PVDF Lens: 150 PSI (10 Bar) @ 70°F (21°C) |
| Max Fluid Temperature |
PVC Lens, FNPT Connectors: 130°F @ 0 PSI PVDF Lens, Tubing Connectors: 200°F @ 0 PSI |
| Full Scale Accuracy | ±6% |
| Body, Paddle, Axle Material |
PVDF |
| Connector Material |
FNPT Connections: PVC Tubing Connections: PVDF |
| Viewing Lens Material Option |
Clear See Through: PVC Opaque Chemical Resistant: PVDF |
| O-Ring Seals |
Viton |
| Compression Seal To Pump |
PVC |
| Approx. Ship Weight |
1 lb |
| Dimensions |
5″ x 2.22″ |
