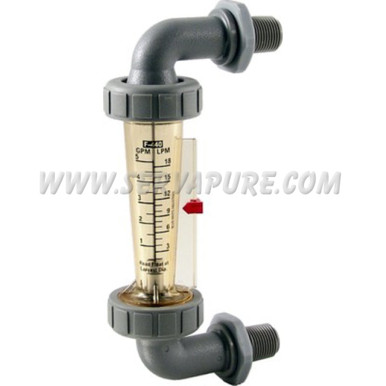

Description
Standard Panel Mount models for liquid
F-440 Features
– Tough Polysulfone meter body resists high temperatures and pressures
– Compact size for tight installation spaces
– 2″ scale length (approximate)
– Direct reading permanent scale
– In-line or Panel mount configurations available
– Optional integral flow adjustment valve
– Standard models 316 stainless steel guide rods
– Not recommended for direct sunlight
– Available OEM options: Private labeling, custom calibrations, custom materials.
F-440 Specifications
| Adapter size | 3/4″ MNPT |
| Low Flow Reading | 1.0 GPM (5.0 LPM) |
| High Flow Reading |
10.0 GPM (37.5 LPM) |
| Adapter Material |
Polysulfone |
| Float Material |
316SS |
| Max Working Pressure |
175 psi @ 70° F |
| Max Fluid Temperature |
212°F @ 0 psi |
| Full Scale Accuracy |
+/- 4% |
| O-Ring Seals |
Viton (optional EP) |
| Metered Body |
Machined acrylic |
| Approx. Ship Weight |
1/2 lb. |
| Dimensions | 8-1/8″ x 3-1/2″ |
* NIST certificates optional
