Description

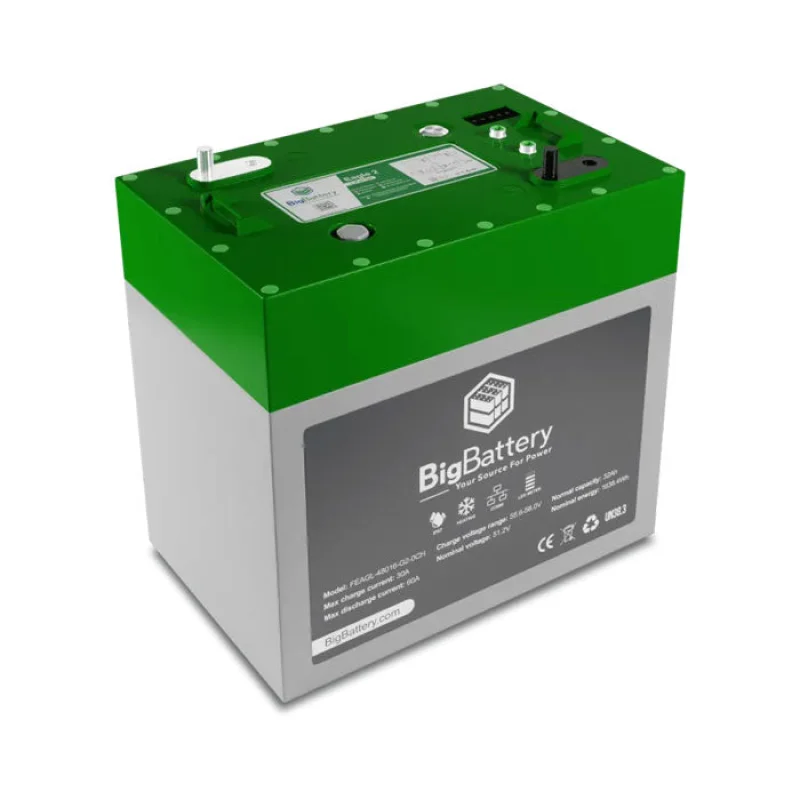

48V EAGLE 2 | LiFePO4 | 32Ah | 1.63kWh | Golf & Utility Cart Battery
The 48V EAGLE 2 LiFePO Battery (32Ah | 1.63kWh) is a compact, high-performance lithium battery designed primarily for golf carts, utility vehicles, and neighborhood electric vehicles (NEVs). Built in a GC2 form factor, it serves as a true drop-in replacement for lead-acid batteries like the Trojan T-105, delivering longer runtime, faster charging, and zero maintenance.
Powered by Tier 1 LiFePO cells, the EAGLE 2 provides reliable, stable energy with no voltage sag ensuring smooth acceleration, consistent torque, and improved overall performance. Its energy-dense design allows for easy installation into existing battery trays without modification.
Engineered for real-world conditions, the EAGLE 2 features an IP67-rated waterproof and dustproof enclosure, making it ideal for off-road, beach, and rugged environments. Whether youre cruising the course, hauling equipment, or navigating trails, this battery delivers dependable, long-lasting performance.
Best Fit For: Golf carts, Utility vehicles, Scissor lifts,, Marine and boating applicationsNeighborhood electric vehicles (NEVs), Light mobile applications (RV / camper auxiliary use)
Included: 1 Eagle 2 Carrying Handle, 1 Eagle 2 CAN Comm Cable, 1 Parallel CAN Comm Cable, 2 M8 Nuts & Screws
Installation Compatibility: GC2 form factor (drop-in replacement). Compatible with T-105 and similar lead-acid battery trays
A single EAGLE 2 battery is not designed to power a full golf cart system. A minimum of 2 batteries is required, with 3+ recommended for higher performance and extended range.
Big Battery 48V Eagle 2 Specs
System Voltage: 48V Nominal Voltage: 51.2V Chemistry: LiFePO4 kWh Capacity: 1.63kWh Ah Capacity: 32Ah Charging Voltage Range: 55.6 58V Max Charge Voltage: 58.4V Operating Voltage Range: 48 58.8V Suggested Low Voltage Cutoff: 48 50.8V BMS Cutoff Range: 42 47V Cell Configuration: 16S Max Continuous Discharge Current: 60A Max Continuous Power: 3072W Max Discharge Peak Current: 200A (Max 3 seconds) Max Charge Current: 30A Charge Temperature Range: -4F 131F (-20C 55C) Discharge Temperature Range: -4F 140F (-20C 60C) Optimal Discharge Temperature Range: 59F 95F (15C 35C) Storage Temperature Range: 23F 95F (-5C 35C) (Max 3 months) 32F 77F (0C 25C) (Max 12 months) Weight: 33 lb (15 kg) Depth: 7.1 in (180 mm) Width: 10.2 in (260 mm) Height: 10.8 in (274 mm) Max Connections: Up to (10) Parallel Protection Rating: IP67 / NEMA 6 Communications: CANBus Self-Heating: Yes
Big Battery 48V Eagle 2 Features
- 1.63kWh LiFePO Capacity (32Ah) Compact, energy-dense lithium power
- GC2 Drop-In Replacement Direct replacement for lead-acid batteries like Trojan T-105
- Golf Cart Optimized Designed for performance, range, and reliability
- Tier 1 Lithium Cells Safe, stable, and long-lasting battery chemistry
- No Voltage Sag Consistent power delivery for smooth acceleration and torque
- IP67 Waterproof & Dustproof Built for harsh environments, including sand and water exposure
- Fast Charging Capability Reduced downtime and quicker turnaround
- Zero Maintenance No watering, corrosion, or upkeep required
- Lightweight Design Easier handling and improved vehicle efficiency
- Long Cycle Life Built for years of dependable daily use
Your Satisfaction with BigBattery is Guaranteed:
- 12-Year Limited Warranty
- Lowest Price Guarantee
