Description

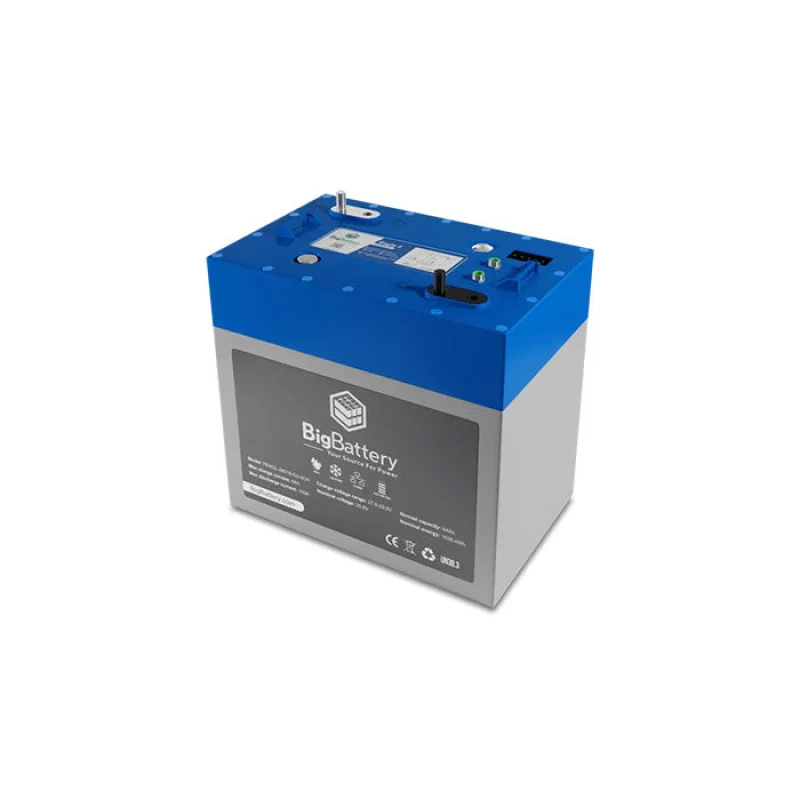

24V Eagle 2 LiFePO4 Battery | 64Ah | 1.63kWh | Industrial | UTVs | RVs | Marine Battery
Upgrade your system with the 24V EAGLE 2 LiFePO Battery (64Ah | 1.63kWh), a compact, GC2-size drop-in replacement for 24V lead-acid batteries, including the Trojan T-105. Built with Tier 1 LiFePO cells, it delivers efficient, lightweight, and maintenance-free power for a wide range of applications.
Designed for industrial equipment, UTVs, RVs, marine systems, and light off-grid setups, the EAGLE 2 provides consistent performance with improved runtime and faster charging compared to traditional lead-acid batteries all in a simple, easy-to-install form factor.
Best Fit For: UTVs and utility vehiclesIndustrial equipment and scissor lifts, RVs and camper systems, Marine and boating applications, Light off-grid and solar setups
Included: (1) Eagle 2 Carrying Handle, (1) Eagle 2 CAN Comm Cable, (1) Parallel CAN Comm Cable, (2) M8 Nuts & Screws
Installation Compatibility: GC2 form factor (drop-in replacement), Compatible with T-105 and similar lead-acid battery trays, Fits standard battery trays with minimal or no modification, Supports CANBus / inverter communication for system integration
A single EAGLE 2 battery is not designed to power a full golf cart system. A minimum of 2 batteries is recommended depending on your voltage and power requirements. Always match your system configuration to your motor and controller specifications.
Big Battery 24V Eagle 2 Specs
System Voltage: 24V Nominal Voltage: 25.6V Chemistry: LiFePO4 kWh Capacity: 1.63kWh Ah Capacity: 64Ah Charging Voltage Range: 27.8 29V Max Charge Voltage: 29.2V Operating Voltage Range: 24 28.8V Suggested Low Voltage Cutoff: 24 25.4V BMS Cutoff Range: 21 23.5V Cell Configuration: 8S Max Continuous Discharge Current: 100A Max Continuous Power: 2560W Max Discharge Peak Current: 200A (Max 5 seconds) Max Charge Current: 64A Charge Temperature Range: -4F 131F (-20C 55C) Discharge Temperature Range: -4F 140F (-20C 60C) Optimal Discharge Temperature Range: 59F 95F (15C 35C) Storage Temperature Range: 23F 95F (-5C 35C) (Max 3 months) 32F 77F (0C 25C) (Max 12 months) Weight: 38 lb (17.2 kg) Depth: 7.1 in (180 mm) Width: 10.2 in (260 mm) Height: 10.8 in (274 mm) Max Connections: Up to (10) Parallel Protection Rating: IP67 / NEMA 6 Communications: CANBus Self-Heating: Yes
Big Battery 24V Eagle 2 Features
- 1.63kWh LiFePO Capacity (64Ah) Compact, high-density lithium power
- GC2 Drop-In Replacement Easy upgrade from lead-acid batteries
- Tier 1 Lithium Cells Safe, stable, and long-lasting chemistry
- Fast Charging Capability Reduced downtime and improved efficiency
- Lightweight Design Easier handling and better system performance
- Advanced BMS Protection Protection against voltage, current, and temperature risks
- Consistent Power Output No voltage sag under load
- Compact & Versatile Ideal for mobile and light-duty applications
- Maintenance-Free Operation No watering or routine servicing required
- Long Cycle Life Built for years of dependable performance
