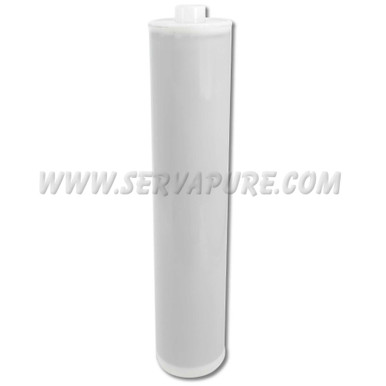

Description
– Ultra High Purity Water
– Vaponics and Barnstead Compatible
– Lowest Operating Costs
VP series cartridges provide ultra high purity filtration for a variety of applications. Constructed of non-pigmented, virgin materials the spin welded construction provides the longest life and highest quality. Applications include deionization, submicron filtration, organics, chlorine, oxygen and amine removal.
Standard filters fit all ARIES, UNIX and Vaponics systems and are compatible with Barnstead systems. Hose nipple end caps have tapered ends for easy connections. Straight nipple tube ends can be used with any 3/8″compression or tubing fitting. Threaded 1/8″ male npt connections are also available.
Features & Benefits
– Capacity: 400 grains/660 ppm
– Spin welded construction
– High purity plastic components
– Individually lot numbered
– Highest capacity cartridges
– Vaponics and Barnstead Compatible
– Cartridge kits available
– Custom filters available
Barnstead Equivalent
– D8809
Vaponics Equivalent
– MRX-1
– MRX-2
Specifications
| Connections | Vaponics/Aries Style or Barnstead PCS Options: 3/8″ Tapered Hose Barb |
| Material of Construction | Non pigmented ABS |
| Diameter | Standard: 3.38″ Nipple: 3.50″ |
| Body Length (Standard) | 16.31″ |
| Overall Length | |
| Standard | 17.0″ |
| Hose Nipple | 17.8″ |
| Hose Nipple (2/3 size) | 10.75″ |
| Volume (Standard) | 134.2 cu. in. (0.078 cu. ft.) |
| Shipping Weight | 4.8 lbs |
| Flow | 1.0 GPM (3.8 LPM) |
| Maximum Pressure | 30 psi |
