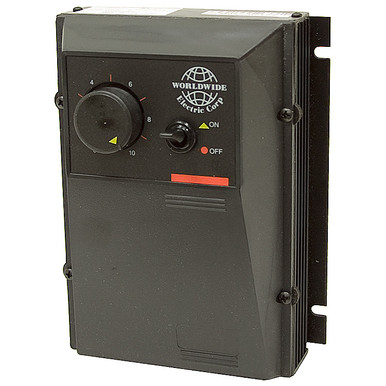

90/180 Volt DC Non-Rev PMDC Motor Controller Worldwide WDCCONT

Description

VARIABLE SPEED DC MOTOR CONTROL
Brand new, WORLD WIDE ELECTRIC model WDCCONT variable speed DC motor controller. Designed for DC permanent magnet, shunt wound and some universal (AC/DC) motors. Enclosed and gasketed cover rated NEMA 4/12. Integral potentiometers for setting minimum and maximum speed, acceleration and deceleration, torque and IR compensation. ON/OFF switch and speed control potentiometer on cover face. Heatsink integrated into housing.

SPECIFICATIONS

• Input Voltage 120/240 VAC
• Output
    90 VDC @ 120 VAC
    180 VDC @ 240 VAC
• Amperage
    F.L.A. 10.8 amps DC
• Speed Regulation/Range 1% regulation over 50:1 speed range
• HP Range
    1/8 HP to 1 HP @ 90 VDC
    1/4 HP to 2 HP @ 180 VDC
• Mount 4 bolt on 5-1/8″ x 5-1/2″ centers
• Size7″ x 5-9/16″ x 3-1/4
• Shpg. 4 lbs.
