9" x 4.75"&16" x 4.5" Double Acting Tandem Hydraulic Cylinder

9″ x 4.75″&16″ x 4.5″ Double Acting Tandem Hydraulic Cylinder

Original price was: $799.95.Current price is: $159.99.

SKU: 904886 Category:

Description

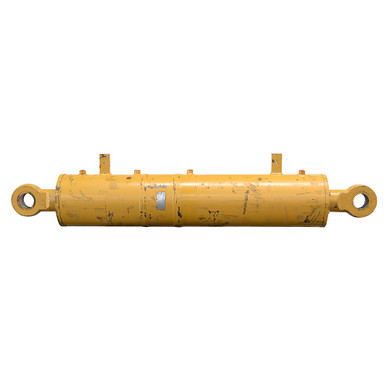

9″ x 4.75″//16″ x 4.5” DOUBLE ACTING HYDRAULIC CYLINDER
Unused old inventory. VICTO FLUID POWER double acting tandem hydraulic cylinder. Numbers on cylinder 1259517H91.

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke 9″ x 4.75″//16″
  • Barrel Thickness 0.715″
  • Gland Retainer Bolt on
  • Pressure 3000 PSI
  • Rod Dia. 4.5″//4.5″
  • Ports SAE 10
  • Retracted Length 66.25″
  • Gland Face to Rod Pin Center 6.875″//7.125″
  • Shpg. 1023 lbs.
END MOUNTINGS
  • Short End Tang
  • Width 2.99″
  • Pin-Center-To-Tang-End 3.29″
  • Pin Hole 3″
  • Long End Tang
  • Width 2.95″
  • Pin-Center-To-Tang-End 3.27″
  • Pin Hole 3″
