Description

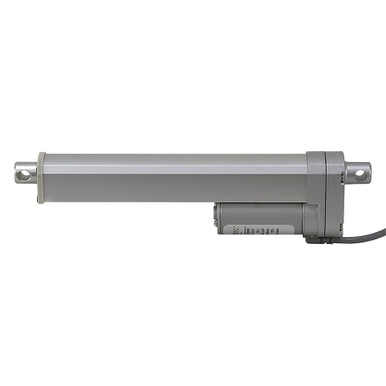

12 VOLT DC 225 LB. LINEAR ACTUATOR
Brand new, GLIDEFORCE model MD12 medium-duty linear actuator. Simple two wire hookup. Metal housing is water resistant and sealed against dust. Permanent magnet motor. Preset limit switches at both ends of stroke.
SPECIFICATIONS
- Brand Glideforce
- Model Number MD122010
- Stroke 250 mm (9.84″)
- Voltage 12 Volt DC
- Push/Pull Rating
Dynamic 225 lbs. max
- Extension Speed
No Load 0.58 in/sec
Max Load 0.41 in/sec
- Amps
No Load 1.1
Full Load 4.6
- Gear Ratio 20:1
- Duty 25%
- Operational Temperature Range
-13° F to +149° F
- Enclosure IP65
- Pin Holes 10mm (0.394″)
- Retracted Length 13.98″
- Shaft Dia. 20mm (0.787″)
- Size 14.72″ x 3.43″ x 1.77″ (374mm x 87mm x 45mm)
- Shpg. 5 lbs.
Mounting Brackets
| Linear Actuator Mounting Bracket Medium Duty Aluminum GlideForce LA-MD-BRACKET |
501068 |
| Linear Actuator Mounting Bracket Medium Duty Steel GlideForce LA-MD-BRKT-S |
501067 |
Compatible Polarity Reversing Switches
| DPDT-CO 30 Amp Maintained Toggle Switch GlideForce SWT-TOG-4W |
500725 |
| DPDT-CO 30 Amp Momentary Toggle Switch GlideForce SWT-TOG-MOM-4W |
500726 |
Optional Reversing Relay
| 12 Volt DC 100 Amp Reversing Relay GlideForce GF90-1244 |
500558 |
