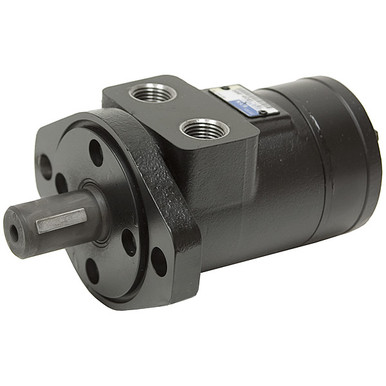

9.7 cu in Char-Lynn 101-1028 Hydraulic Motor

Description

9.7 cu in CHAR-LYNN 101-1028 HYD MOTOR
Brand new CHAR-LYNN H series motors. Gerotor power element. Interchangeable with the following motor lines: Dynamic BMPH, Danfoss DH, White RS, Parker/Ross MG/TB.

SPECIFICATIONS

• Disp. 9.7 cu. in. / rev.
• Motor Type Gerotor
• Pressure:
    1650 PSI cont.
    2250 PSI int.
• Torque:
    2059in-lbs. cont.
    2824in-lbs. int.
• Speed:
    353RPM cont.
    471RPM int.
• Flow:
    15GPM cont.
    20GPM int.
• Rotation Reversible
• Mount 2 bolt SAE A
• Shaft 1″ dia. x 1-3/4″ keyed
• Ports 1/2″ NPT
• Case Drain N/A
• Size5-13/16″ x 3-5/16″ x 3-5/16″
• Shpg.15 lbs.
