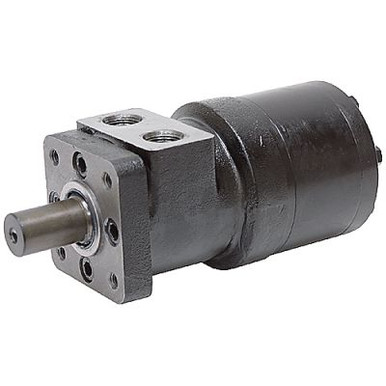

9.59 cu in Dynamic BMRS160H4KS Hydraulic Motor

Description

9.59 cu in DYNAMIC BMRS160H4KS HYDRAULIC MOTOR
Brand new. DYNAMIC BMRS series hydraulic motors. Gerolor power element. Interchangeable with the following motor lines: CHAR-LYNN S, DANFOSS DS, WHITE RS, PARKER – ROSS MG/TB.

SPECIFICATIONS

• Brand Dynamic
• Model Number 61304
• Build Number  BMRS160H4KS
• Family BMRS
• Displacement 9.59 cu. in. / rev.
• Motor Type Gerolor
• Rotation Reversible
• Pressure:
     2321 PSI cont.
     2900 PSI int.
• Torque:
     3186 in-lbs cont.
     3805 in-lbs. int.
• Speed:
     378 RPM cont.
     475 RPM int.
• Flow:
     15.9 GPM cont.
     19.8 GPM int.
• Mount 4 bolt 3.25″ bolt circle
• Shaft 1″ dia. x 1.57″ long w/ 1/4″ key, tapped 1/4″-20
• Ports SAE 10
• Case Drain SAE 4
• Size 6.625″ x 3.25″ x 3.75″
• Shpg. 20 lbs.
