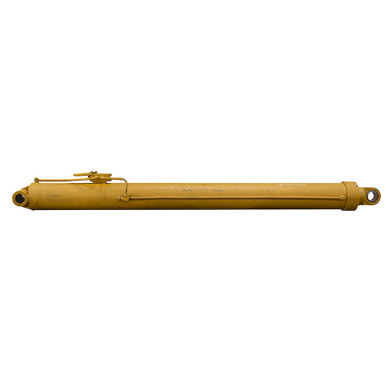

9.475″(240mm) x 111.5″(2832.1mm) x 7.25″(184.15mm) Double Acting Hydraulic Cylinder Tadano 360-218-69510

SKU: 902482 Category: hot sale

Description

9.475″(240mm) x 111.5″(2832.1mm) x 7.25″(184.15mm) DOUBLE ACTING HYDRAULIC CYL
Unused old inventory. Double acting hydraulic cylinder. Ports have cross over tubes and manifold holding valve. Cylinder also has ports to bypass holding valve. Tadano numbers on cylinder 360-218-69510 81-8940 TR-500E.

SPECIFICATIONS
Double Acting Bore x Stroke 9.475″(240mm) x 111.5″(2832.1mm) Barrel Thickness 0.544″ Gland Retainer Externally threaded gland cap Pressure 3000 PSI Rod Dia. 7.25″(184.15mm), Hollow Rod Thickness 0.563″	Extend Port JIS 60° Cone (30° Seat), BSPP-12 (3/4″-14) Retract Port JIS 60° Cone (30° Seat), BSPP-8 (1/2″-14) Retracted Length 137″ Gland Face to Rod Pin Center 7″ Shpg. 1426 lbs.
END MOUNTINGS
Rod End Swivel Eye Thickness, Max 2.82″ Pin-Center-To-Swivel Eye-End 3.60″ Swivel Eye Width 2.99″ Pin Hole 3.543″(90mm)	Base End Cross-Tube O.D. 6″ Width 11″ Pin Hole 3.543″(90mm)
