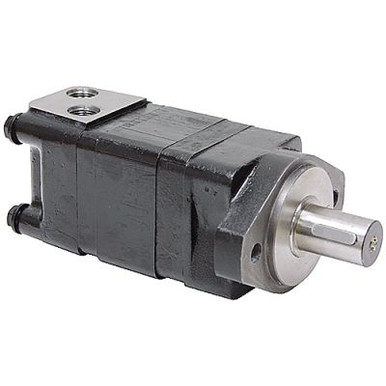

9.39 cu in Dynamic BMSY160E2GS Hydraulic Motor

Description

9.39 cu in DYNAMIC BMSY160E2GS HYDRAULIC MOTOR
Brand new. DYNAMIC BMSY series hydraulic motors. Gerolor power element. Tapered roller bearings on output shaft for high axial and radial load capacity. Interchangeable with the following motor lines: CHAR-LYNN 2000, DANFOSS OMS / OMSS, WHITE RE / DH, PARKER ROSS MB /TF.

SPECIFICATIONS

• Brand Dynamic
• Model Number 62514
• Build Number BMSY160E2GS
• Family BMSY Series
• Displacement 9.39 cu. in. / rev.
• Motor Type Gerotor
• Rotation Reversible
• Pressure:
     3045 PSI cont.
     3262 PSI int.
• Torque:
     4292 in-lbs. cont.
     4778 in-lbs. int.
• Speed:
     470 RPM cont.
     560 RPM int.
• Flow:
     19.8 GPM cont.
     23.7 GPM int.
• Mount 2 bolt SAE A
• Shaft 1-1/4″ dia x 1.89″ long w/ 5/16″ keyway, tapped 1/4″-20
• Ports SAE 10
• Case Drain SAE 4
• Size 7.25″ x 5.1825″ x 4.0625″
• Shpg. 28 lbs.
