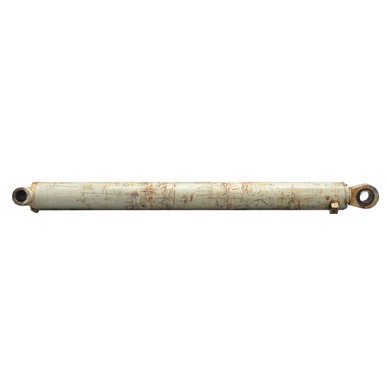

9.04"(230mm) x 97"(2463.8mm) x 6.30"(160mm) Double Acting Hydraulic Cylinder 668703/04 191 ZZ38R1003

9.04″(230mm) x 97″(2463.8mm) x 6.30″(160mm) Double Acting Hydraulic Cylinder 668703/04 191 ZZ38R1003

Original price was: $1,849.95.Current price is: $369.99.

SKU: 904387 Category:

Description

9.04″(230mm) x 97″(2463.8mm) x 6.30″(160mm) DOUBLE ACTING HYDRAULIC CYLINDER
Unused old inventory. Double acting hydraulic cylinder. Cylinder has bleeders on both the rod and base end. Numbers on cylinder 668703/04 191 ZZ38R1003

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke 9.04″(230mm) x 97″(2463.8mm)
  • Barrel Thickness 0.527″
  • Gland Retainer Threaded in gland
  • Pressure 3000 PSI
  • Rod Dia. 5.5″(140mm), Hollow
  • Rod Thickness 0.702″
  • Ports 4 bolt 1″ code 61 flange size 16
  • Retracted Length 120″
  • Gland Face to Rod Pin Center 6.5″
  • Shpg. 1240 lbs.
END MOUNTINGS
  • Base End Swivel Eye
  • Thickness, Max 3.23″
  • Pin-Center-To-Swivel Eye-End 4.87″
  • Swivel Eye Width 3.34″
  • Pin Hole 3.94″(100mm)
  • Base End Cross-Tube
  • O.D. 5.94″
  • Width 15.25″
  • Pin Hole 4.12″(105mm)
