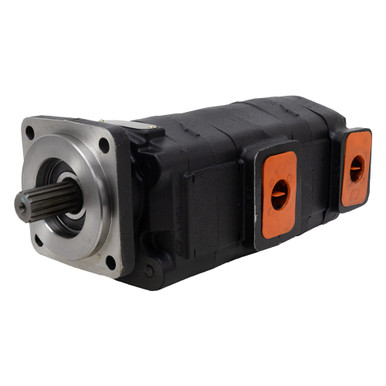

9.00/9.00 CU IN PARKER 322-9125-025 HYDRAULIC GEAR DOUBLE PUMP
New, Parker 322-9125-025 double gear pump. Features three-piece cast iron construction, low friction bushing and balanced thrust plates. Pump has two 5/8″-11 x 1.31″ studs extending past rear of pump body.
SPECIFICATIONS
- Brand Parker
- Model Number 322-9125-025
- Part Number PGP365L578JEAB25-7MHAB25-1
- Disp.
Front 9.00 cu in
Rear 9.00 cu in - Pump Type Gear
- Rotation CCW
- Pressure:
3000 PSI cont. - Speed:
900 RPM min.
2400 RPM max. - Flow:
Front 90.7 GPM cont.
Rear 90.7 GPM cont. - Mount 4 Bolt SAE C
- Shaft 1.23″ dia. 14T spline
- Inlet Port 4 Bolt 1-1/2″ Flange code 61
- Outlet Port 4 Bolt 1-1/4″ Flange code 61
- Case Drain None
- Size 20.31″ x 7.5″ x 7.38″
- Shpg. 148 lbs.
