Description
1:1.46 SPEED INCREASER

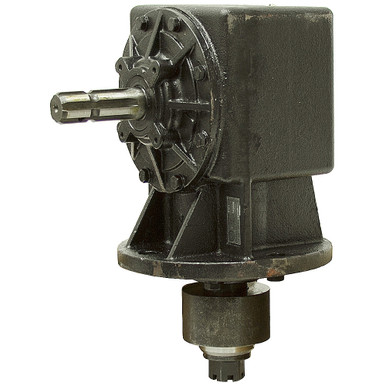

Brand new, OMNI GEAR series RC-71 right angle rotary cutter gearbox. Horizontal input and vertical output downward. Bevel gears. Large deep groove ball bearings to support output. Four 5/16″-18 tapped holes on 4-1/8″ dia. B.C. Ships without oil, user must add oil prior to use per user ‘s manual.
SPECIFICATIONS
- Brand Omni Gear
- Model 250492
- Rotation CCW input gives CW output
- Gear Ratio 1:1.46 Increaser
- Input RPM 540/1000
- Output RPM 788/1460
- Input HP 35-83
- Max Torque 4083-9683 in.lbs.
- Input Shaft 1-3/8″ dia. x 3-7/8″ long 6T spline W/ 5/16″ dia. pinhole
- Output Shaft 2″ dia. 15 tooth tapered spline w/threaded end. 4-5/8″ total length
- Blade Hub 3.94″ dia. x 2.275″ stepped down to 2.5″ dia. x 0.45″ then tapers down to 2.175″ dia. over 0.25″
- Mount 4 holes on 8″ dia. B.C.
- Pilot 5-5/8″ dia.
- Size 12.375″ x 9.75″ x 9.75″
- Shpg. 87 lbs.
