Description

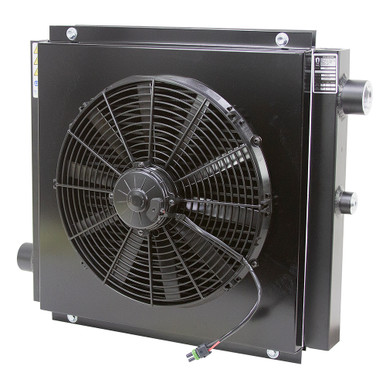

80 GPM AKG DCS30-12 Oil Cooler w/12 Volt DC Fan
Brand new AKG DCS series oil cooler that features aluminum construction, DC fan, leak-free SAE O-Ring connections and mounting tabs.
No internal pressure bypass.
SPECIFICATIONS
- Manufacturer AKG
- Model Number DCS30-12
- Pressure 255 PSI max.
- Temperature 255 F° max.
- Construction Aluminum
- Flow 80 GPM
- Fan Motor Voltage 12 Volts DC
- Amps 19
- Heat Removed Based On 50 F°
Entering Temperature Difference (BTU/HR) 45077 - Airflow Direction Pull
- Port Size SAE 20
- Drain/Temperature Sensor Port Size SAE 8
- Mount Four 7/16″ slotted holes on 7.99″ x 20.91″ centers
- Overall Depth (in.) 7.2
- Overall Width (in.) 23.62
- Overall Height (in.) 22
- Shpg. 58 lbs.
| 115° F Temperature Control Switch Index 8037455 115NO AKG TC-115-WL | 904849 |
| 145° F Temperature Control Switch Index 8037456 145NO AKG TC-140-WL | 904850 |
