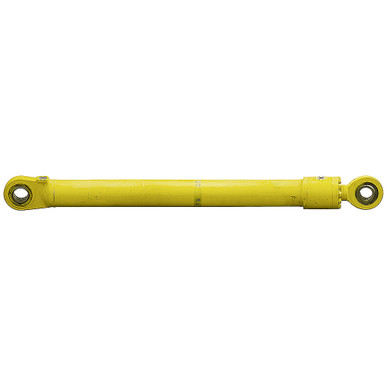

Name: 8" x 74.5" x 140mm (5.512") Double Acting Hydraulic Cylinder Komatsu 209-63-02100
Brand: smartindustrialtools.com
SKU: 902478
Price: 668.60 USD
Availability: InStock

8″ x 74.5″ x 140mm (5.512″) Double Acting Hydraulic Cylinder Komatsu 209-63-02100

SKU: 902478 Category: hot sale

Description

8″ x 74.5″ x 140mm (5.512″) DA HYDRAULIC CYLINDER
New. Welded cylinder with external bolt-on gland cap. Komatsu 209-63-02100 boom cylinder. Flange pads have metric M12-1.75 bolt holes.

SPECIFICATIONS
Double Acting Bore x Stroke 8″ x 74-1/2″ Barrel Thickness 3/4″ Pressure 3000 PSI max. Rod Dia. 140mm (5.512)”	Ports 1-1/2″ 4 Bolt Flange, Code 62 Retracted Length 113-1/2″ Shpg. 1800 lbs.
END MOUNTINGS
Rod End Tang w/ Swivel Eye Max Thickness 3-7/8″ Pin Center to Tang End 6″ Pin Hole 115mm (4.524″)	Base End Tang w/ Swivel Eye Max Thickness 4-5/16″ Pin Center to Tang End 5-13/16″ Pin Hole 130mm (5.141″)
