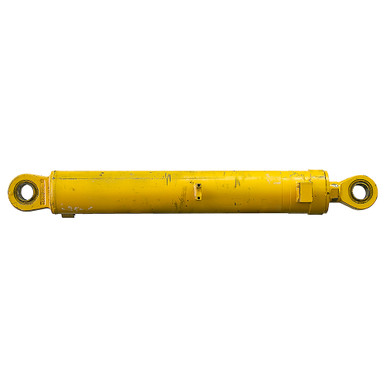

8″ x 43.25″ x 4.5″ DA HYDRAULIC CYLINDER
Unused, old inventory. SEITZ model 193686 welded cylinder with thread-in gland cap. Shaft seals leak, sold as-is.
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke8″ x 43-1/4″
- Barrel Thickness1/2″
- Pressure 3000 PSI max.
- Rod Dia. 4-1/2″
|
- Ports1-1/2″ Four Bolt Flange, Code 61
- Retracted Length 69-1/2″
- Shpg. 750 lbs.
|
| END MOUNTINGS |
|
- Rod End Tang w/ Swivel Eye
- Max Thickness 3″
- Pin Center to Tang End 3-11/16″
- Pin Hole 3-1/4″
|
- Base End Tang w/ Swivel Eye
- Max Thickness 3″
- Pin Center to Tang End 4-1/16″
- Pin Hole 3-1/4″
|
