7" x 64" x 4" Double Acting Hydraulic Cylinder P29213

7″ x 64″ x 4″ Double Acting Hydraulic Cylinder P29213

Original price was: $1,149.95.Current price is: $229.99.

SKU: 904460 Category:

Description

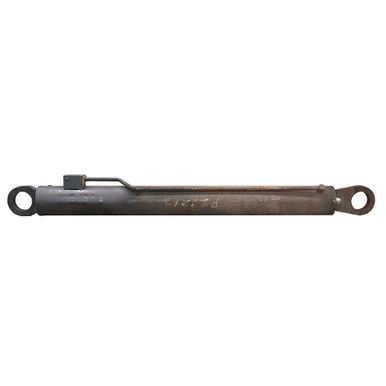

7″ x 64″ x 4″ DOUBLE ACTING HYDRAULIC CYLINDER
Unused old inventory. Double acting hydraulic cylinder. Cylinder has SAE 20 port for cartridge valve. Numbers on cylinder P29213. (Cylinder also has lots of exterior rust. Sold as is.)

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke 7″ x 64″
  • Barrel Thickness 0.513″
  • Gland Retainer Threaded in gland
  • Pressure 3000 PSI
  • Rod Dia. 4″
  • Ports SAE 14
  • Retracted Length 91″
  • Gland Face to Rod Pin Center 8.5″
  • Shpg. 744 lbs.
END MOUNTINGS
  • Rod End Tang
  • Thickness, Max 2.53″
  • Pin-Center-To-Tang-End 3.93″
  • Pin Hole 5″
  • Base End Tang
  • Thickness, Max 2.54″
  • Pin-Center-To-Tang-End 3.99″
  • Pin Hole 5″
