Description

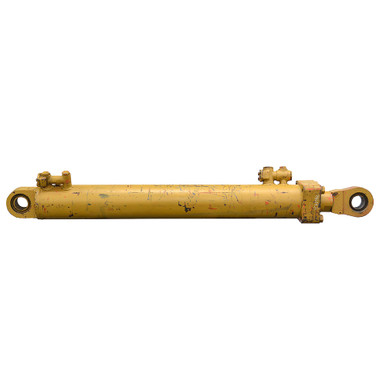

7″ x 49.75″ x 5″ DOUBLE ACTING HYDRAULIC CYLINDER
Unused old inventory. Double acting hydraulic cylinder. Cylinder has leaky rod seals. Numbers on cylinder U288G1931
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke 7″ x 49.75″
- Barrel Thickness 0.5″
- Gland Retainer Bolt on gland
- Pressure 3000 PSI
- Rod Dia. 5″
|
- Ports 4 bolt 1-1/4″ code 61 flange size 20
- Retracted Length 78″
- Gland Face to Rod Pin Center 9.5″
- Shpg. 831 lbs.
|
| END MOUNTINGS |
- Rod End Swivel Eye
- Thickness, Max 3.31″
- Pin-Center-To-Swivel Eye-End 3.38″
- Swivel Eye Width 2.63″
- Pin Hole 3″
|
- Base End Swivel Eye
- Thickness, Max 3.39″
- Pin-Center-To-Swivel Eye-End 3.5″
- Swivel Eye Width 2.63″
- Pin Hole 3″
|
