Description

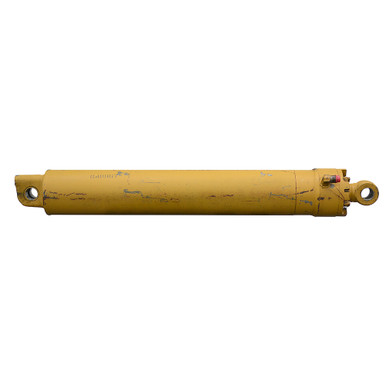

7″ x 41.75″ x 3″ DOUBLE ACTING HYDRAULIC CYLINDER
Unused old inventory. Double acting hydraulic cylinder. Numbers on cylinder 648867.
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke 7″ x 41.75″
- Barrel Thickness 0.375″
- Gland Retainer Threaded in
- Pressure 3000 PSI
- Rod Dia. 3″
|
- Extend Port 1″ NPT
- Retract Port JIC 16 male
- Retracted Length 56.5″
- Gland Face to Rod Pin Center 3.5″
- Shpg. 368 lbs.
|
| END MOUNTINGS |
- Rod End Tang
- Width 3.21″
- Pin-Center-To-Tang-End 2.07″
- Pin Hole 2″
|
- Base End Tang
- Width 4.04″
- Pin-Center-To-Tang-End 2.62″
- Pin Hole 2″
|
