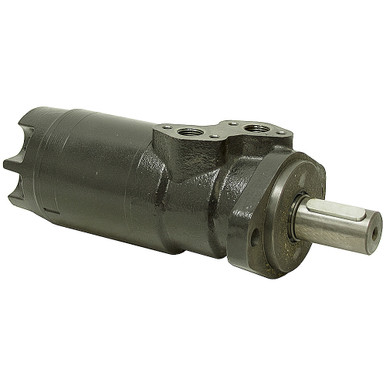

7.9 cu in Hydraulic Motor White Drive Products 281130A6321BAAAA

Description

7.9 cu. in. / rev. WHITE 281130A6321BAAAA HYDRAULIC MOTOR
New, WHITE DRIVE PRODUCTS hydraulic motor. Unpainted mounting surface. Roller stator motor design increases performance in demanding light-duty applications where considerable sideload is present. Optimal needle roller bearing placement and heavy-duty drive link satisfy a variety of applications.

SPECIFICATIONS

• Brand White Drive Products
• Model 281130A6321BAAAA
• Family WG
• Displacement 7.9 cu. in. / rev.
• Motor Type Roller Stator
• Rotation Reversible
• Pressure:
     2000 PSI cont.
     2750 PSI int.
• Torque:
     2135 in-lbs. cont.
     2960 in-lbs. int.
• Speed:
     350 RPM cont.
     440 RPM int.
• Flow:
     12 GPM cont.
     15 GPM int.
• Mount Two-bolt SAE A mount
• Shaft 32mm dia. x 2-11/16″ long, keyed
• Ports 1/2″ BSPP and Manifold Ports, Offset
• Case Drain None
• Size 7.1875″ x 5.125″ x 4.0625″
• Shpg. 18 lbs.
