7.87"(200mm) x 68.5"(1740mm) x 4.72"(120mm) Double Acting Hydraulic Cylinder Komatsu 208-63-66101

7.87″(200mm) x 68.5″(1740mm) x 4.72″(120mm) Double Acting Hydraulic Cylinder Komatsu 208-63-66101

Original price was: $1,249.95.Current price is: $249.99.

SKU: 904864 Category:

Description

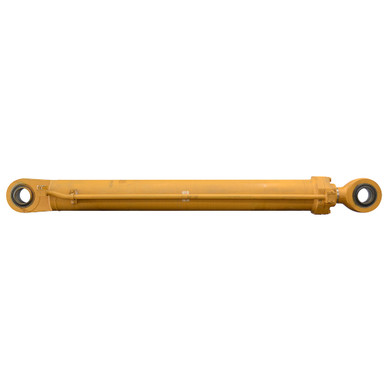

7.87″(200mm) x 68.5″(1740mm) x 4.72″(120mm) DOUBLE ACTING HYDRAULIC CYLINDER
Unused old inventory. KOMATSU double acting hydraulic cylinder. Numbers on cylinder 208-63-66101.

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke 7.87″(200mm) x 68.5″(1740mm)
  • Barrel Thickness 0.656″
  • Gland Retainer Bolt on
  • Pressure 3000 PSI
  • Rod Dia. 4.72″(120mm)
  • Ports 4 bolt 1-1/4″ code 61 flange size 20
  • Retracted Length 99″
  • Gland Face to Rod Pin Center 9″
  • Shpg. 1200 lbs.
END MOUNTINGS
  • Rod End Swivel Eye
  • Width 3.36″
  • Pin-Center-To-Swivel Eye-End 5.1″
  • Swivel Eye Width 3.66″
  • Pin Hole 4.33″(110mm)
  • Base End Swivel Eye
  • Width 3.35″
  • Pin-Center-To-Swivel Eye-End 5.15″
  • Swivel Eye Width 3.66″
  • Pin Hole 4.33″(110mm)
