7.84"(200mm) x 59"(1499mm) x 4.92"(125mm) Double Acting Hydraulic Cylinder Volvo 9014344705 14344705-02

7.84″(200mm) x 59″(1499mm) x 4.92″(125mm) Double Acting Hydraulic Cylinder Volvo 9014344705 14344705-02

Original price was: $1,149.95.Current price is: $229.99.

SKU: 904636 Category:

Description

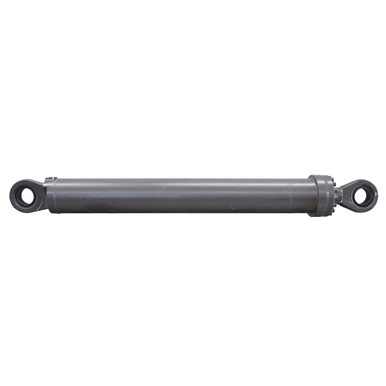

7.84″(200mm) x 59″(1499mm) x 4.92″(125mm) DOUBLE ACTING HYDRAULIC CYLINDER
Unused old inventory. Double acting cylinder. VOLVO numbers on cylinder 9014344705 14344705-02.

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke 7.84″(200mm) x 59″(1499mm)
  • Barrel Thickness 0.641″
  • Gland Retainer Bolt on gland
  • Pressure 3000 PSI
  • Rod Dia. 4.92″(125mm)
  • Ports 4 bolt 1-1/4″ code 62 flange size 20
  • Retracted Length 89″
  • Gland Face to Rod Pin Center 8.5″
  • Shpg. 1120 lbs.
END MOUNTINGS
  • Rod End Tang
  • Width 2.87″
  • Pin-Center-To-Tang-End 4.37″
  • Swivel Eye Width 2.75″
  • Pin Hole 4.33″(110mm)
  • Base End Tang
  • Width 2.91″
  • Pin Center To Tang End  4.33″
  • Swivel Eye Width 2.75″
  • Pin Hole Dia.  4.33″(110mm)
