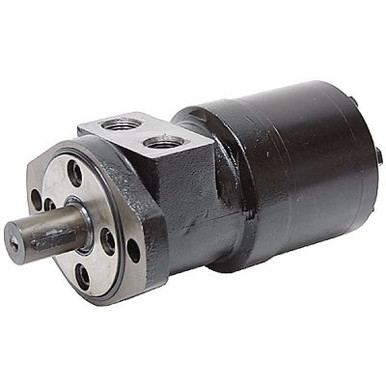

7.76 cu in Dynamic BMRS125H2KS Hydraulic Motor

Description

7.76 cu in DYNAMIC BMRS125H2KS HYDRAULIC MOTOR
Brand new. DYNAMIC BMRS series hydraulic motors. Gerolor power element. Interchangeable with the following motor lines: CHAR-LYNN S, DANFOSS DS, WHITE RS, PARKER – ROSS MG/TB.

SPECIFICATIONS

• Brand Dynamic
• Model Number 61323
• Build Number BMRS125H2KS
• Family BMRS
• Displacement 7.76 cu. in. / rev.
• Motor Type Gerolor
• Rotation Reversible
• Pressure:
     2321 PSI cont.
     2900 PSI int.
• Torque:
     2655 in-lbs cont.
     3009 in-lbs. int.
• Speed:
     475 RPM cont.
     600 RPM int.
• Flow:
     15.9 GPM cont.
     19.8 GPM int.
• Mount 2 bolt SAE A
• Shaft 1″ dia. x 1.57″ long w/ 1/4″ key, tapped 1/4″-20
• Ports SAE 10
• Case Drain SAE 4
• Size 6.25″ x 5.18″ x 3.75″
• Shpg. 18 lbs.
