7.75"(197mm) x 51"(1295mm) x 4.92"(125mm) Double Acting Hydraulic Cylinder R14044228

7.75″(197mm) x 51″(1295mm) x 4.92″(125mm) Double Acting Hydraulic Cylinder R14044228

Original price was: $799.95.Current price is: $159.99.

SKU: 904635 Category:

Description

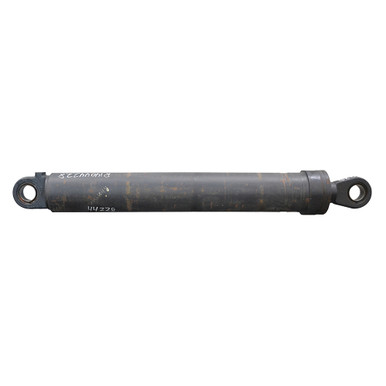

7.75″(197mm) x 51″(1295mm) x 4.92″(125mm) DOUBLE ACTING HYDRAULIC CYLINDER
Unused old inventory. Double acting hydraulic cylinder. Numbers on cylinder R14044228.

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke 7.75″(197mm) x 51″(1295mm)
  • Barrel Thickness 0.635″
  • Gland Retainer Bolt on gland
  • Pressure 3000 PSI
  • Rod Dia. Hollow, 4.92″(125mm)
  • Rod Thickness 1.09″
  • Ports 4 bolt 1″ code 61 flange size 16
  • Retracted Length 75.75″
  • Gland Face to Rod Pin Center  7.75″
  • Shpg. 812 lbs.
END MOUNTINGS
  • Rod End Tang
  • Width 2.87″
  • Pin-Center-To-Tang-End 3.66″
  • Swivel Eye Width 2.375″
  • Pin Hole 3.54″(90mm)
  • Base End Tang
  • Width 2.91″
  • Pin Center To Tang End 3.58″
  • Swivel Eye Width 2.375″
  • Pin Hole 3.54″(90mm)
