Description

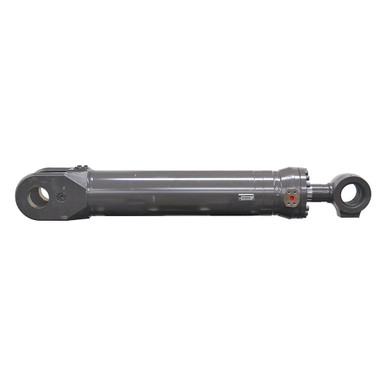

7.48″(190mm) x 31.69″(805mm) x 3.54″(90mm) DOUBLE ACTING HYDRAULIC CYLINDER
Unused old inventory. VOLVO double acting hydraulic cylinder. Numbers on cylinder 11088625.
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke 7.48″(190mm) x 31.69″(805mm)
- Barrel Thickness 0.629″
- Gland Retainer Bolt on
- Pressure 3000 PSI
- Rod Dia. 3.54″(90mm)
|
- Extend Port 4 bolt 1-1/4″ code 61 flange size 20
- Retract Port 4 bolt 1″ code 61 flange size 16
- Retracted Length 58.5″
- Gland Face to Rod Pin Center 8.5″
- Shpg. 672 lbs.
|
| END MOUNTINGS |
- Rod End Tang
- Width 5.26″
- Pin-Center-To-Tang-End 3.8″
- Pin Hole 3.94″(100mm)
|
- Base End Clevis
- Outside Width 9.125″
- Inside Width 5.75″
- Throat Depth 9.75″
- Pin Hole 3.94″(100mm)
|
