Description
7.09″(180mm) x 36.69″(932mm) x 3.74″(95mm) DA HYD CYL

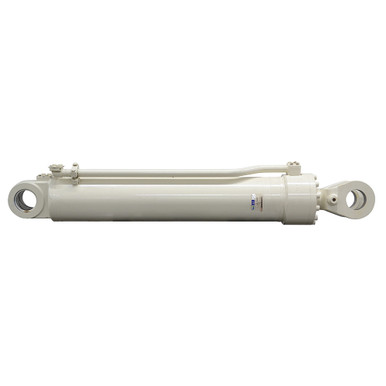

Unused old inventory. DOOSAN double acting hydraulic cylinder. Numbers on cylinder 440-00596.
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke7.09″(180mm) x 36.69″(932mm)
- Barrel Thickness 0.445″
- Gland Retainer Bolt on
- Pressure3000 PSI
- Rod Dia. 3.74″(95mm)
|
- Ports 4 bolt 1″ code 61 flange size 16
- Retracted Length57.31″
- Gland Face to Rod Pin Center 7″
- Shpg. 560 lbs.
|
| END MOUNTINGS |
|
- Rod End Clevis
- Outside Width 7.38″
- Inside Width 4.16″
- Throat Depth 7″
- Pin Hole 3.54″(90mm)
|
- Base End Tang
- Width 4.72″
- Pin-Center-To-Tang-End 3.37″
- Pin Hole 3.54″(90mm)
|
