Description

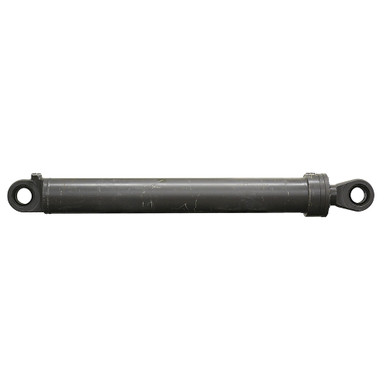

7.087″ (180mm) x 51.125″ x 4.921″ (125mm) DA HYDRAULIC CYLINDER
New, welded cylinder with bolt-on gland cap. “14047966” stamped into cylinder barrel.
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke180mm (7.087″) x 51-1/8″
- Barrel Thickness13mm (0.512″)
- Pressure 3000 PSI max.
- Rod Dia. 125mm (4.921″)
|
- Ports1″ Four-Bolt Flange, Code 61
- Retracted Length 75-1/2″
- Shpg. 780 lbs.
|
| END MOUNTINGS |
|
- Rod End Tang w/ Swivel Eye
- Max Thickness 2-7/8″
- Pin Center to Tang End 3-13/16″
- Pin Hole 90mm (3.543″)
|
- Base End Tang w/ Swivel Eye
- Max Thickness 2-15/16″
- Pin Center to Tang End 3-3/4″
- Pin Hole 90mm (3.543″)
|
