Description

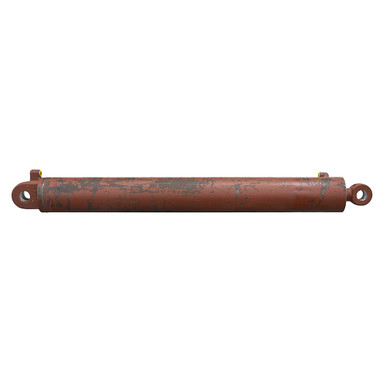

6″ x 50.5″ x 2.5″ DOUBLE ACTING HYDRAULIC CYLINDER
Unused old inventory. Double acting hydraulic cylinder. Numbers on cylinder D021452K4.
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke 6″ x 50.5″
- Barrel Thickness 0.375″
- Gland Retainer Threaded in
- Pressure 3000 PSI
- Rod Dia. 2.5″
|
- Ports SAE 10
- Retracted Length 63.75″
- Gland Face to Rod Pin Center 3.5″
- Shpg. 307 lbs.
|
| END MOUNTINGS |
- Rod End Tang
- Width 2.77″
- Pin-Center-To-Tang-End 2.104″
- Pin Hole 2″
|
- Base End Tang
- Width 2.787
- Pin-Center-To-Tang-End 2.644″
- Pin Hole 2″
|
