Sale!

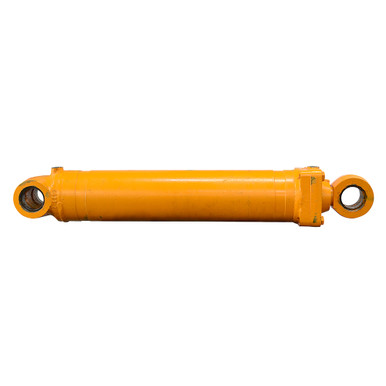

6.89"(175mm) x 36"(915mm) x 3.15"(80mm) DA Hydraulic Cylinder

6.89″(175mm) x 36″(915mm) x 3.15″(80mm) DA Hydraulic Cylinder

Original price was: $599.95.Current price is: $119.99.

SKU: 904867 Category:

Description

6.89″(175mm) x 36″(915mm) x 3.15″(80mm) DA HYD CYL
Unused old inventory. Double acting hydraulic cylinder. Numbers on cylinder 08291825.

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke6.89″(175mm) x 36″(915mm)
  • Barrel Thickness 0.839″
  • Gland Retainer Bolt on
  • Pressure3000 PSI
  • Rod Dia. 3.15″(80mm)
  • Ports Two M12-1.75 tapped bolt holes on 2.56″ centers w/ 0.868″ port hole
  • Retracted Length52.625
  • Gland Face to Rod Pin Center 3.75″
  • Shpg. 568 lbs.
END MOUNTINGS
  • Rod End Tang
  • Width 3.74″
  • Pin-Center-To-Tang-End 3.56″
  • Pin Hole 3.54″(90mm)
  • Base End Tang
  • Width 9.06″
  • Pin-Center-To-Tang-End 3.65
  • Pin Hole 3.54″(90mm)
