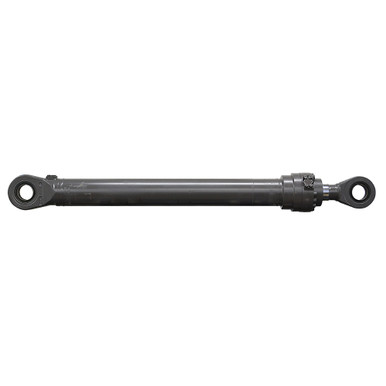

6.693" (170mm) x 61.375" x 4.921" (125mm) Double Acting Hydraulic Cylinder Volvo 14342391-1

6.693″ (170mm) x 61.375″ x 4.921″ (125mm) Double Acting Hydraulic Cylinder Volvo 14342391-1

Original price was: $1,249.95.Current price is: $249.99.

SKU: 904018 Category:

Description

6.693″ (170mm) x 61.375″ x 4.921″ (125mm) DOUBLE ACTING HYDRAULIC CYLINDER
New, VOLVO model 14342391-1 welded cylinder with bolt-on gland cap.

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke 170mm (6.693″) x 61-3/8″
  • Barrel Thickness 5/8″
  • Pressure 3000 PSI max.
  • Rod Dia. 125mm (4.921″)
  • Ports 1-1/4″ Four-Bolt Flange, Code 62
  • Retracted Length 95-1/2″
  • Shpg. 1100 lbs.
END MOUNTINGS
  • Rod End Tang w/ Swivel Eye
  • Max Thickness 2-15/16″
  • Pin Center to Tang End 4-3/4″
  • Pin Hole 110mm (4.331″)
  • Base End Tang w/ Swivel Eye
  • Max Thickness 3″
  • Pin Center to Tang End 5-3/16″
  • Pin Hole 110mm (4.331″)
