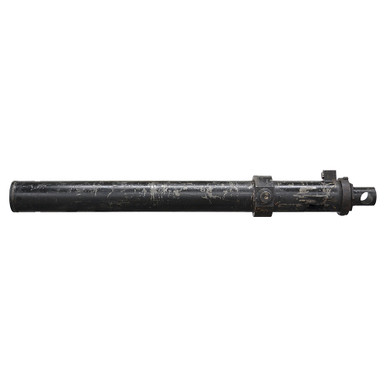

6.5" x 69" x 4.5" Double Acting Hydraulic Cylinder

6.5″ x 69″ x 4.5″ Double Acting Hydraulic Cylinder

Original price was: $799.95.Current price is: $159.99.

SKU: 904392 Category:

Description

6.5″ x 69″ x 4.5″ DOUBLE ACTING HYDRAULIC CYLINDER
Unused old inventory. Double acting hydraulic cylinder.

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke 6.5″ x 69″
  • Barrel Thickness 0.370″
  • Gland Retainer Externally threaded gland cap
  • Pressure 3000 PSI
  • Rod Dia. 4.5″, Hollow
  • Rod Thickness 0.5″
  • Ports SAE 14 4 bolt 1-1/2″ code 62 flange size 24
  • Retracted Length 23.5″
  • Gland Face to Rod Pin Center 3.25″
  • Shpg. 464 lbs.
END MOUNTINGS
  • Rod End Thru-Hole
  • Width 3.5″
  • Pin Center to Rod End 2.25″
  • Pin Hole 2-3/4″
  • Base End Male Trunnion
  • Pin Outside/Inside Width 14.5″ / 10.5″
  • Pin-Center-To-Rod Pin Center 23.5″
  • Pin Center To Base End 57.5″
  • Pin Diameter 2-1/2″
