6.5" x 54" x 3" Double Acting Hydraulic Cylinder 73129652 RH

6.5″ x 54″ x 3″ Double Acting Hydraulic Cylinder 73129652 RH

Original price was: $599.95.Current price is: $119.99.

SKU: 902729 Category:

Description

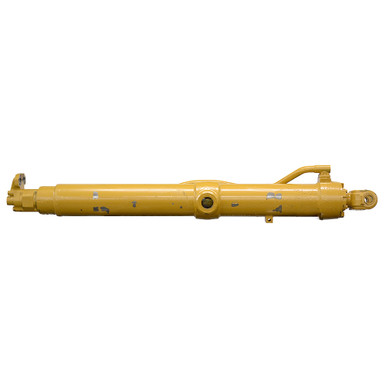

6.5″ x 54″ x 3″ DOUBLE ACTING HYDRAULIC CYLINDER
Unused old inventory. Double acting hydraulic cylinder. 73129652 RH

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke 6.5″ x 54″
  • Barrel Thickness 0.385″
  • Gland Retainer Internally threaded gland cap
  • Pressure 3000 PSI max.
  • Rod Dia. 3″
  • Ports 4 bolt 1″ Code 61 flange size 16
  • Retracted Length 35″
  • Overall Length 81.5″
  • Shpg. 473 lbs.
END MOUNTINGS
  • Rod End Female Trunnion
  • Pin Outside/Inside Width 11.188″ / 7.25″
  • Pin-Center-To-Rod Pin Center 35″
  • Pin Center To Base End 44.5″
  • Pin Diamter 2.526″
  • Pin Hole 2-1/2″
  • Base End Clevis
  • Outside Width 7″
  • Inside Width 3.689″
  • Throat Depth 4″
  • Pin Hole 1-3/4″
