6.5" x 52" x 4" Double Acting Hydraulic Cylinder 20V1055 37562 B363 8658

6.5″ x 52″ x 4″ Double Acting Hydraulic Cylinder 20V1055 37562 B363 8658

Original price was: $499.95.Current price is: $99.99.

SKU: 904588 Category:

Description

6.5″ x 52″ x 4″ DA HYD CYL

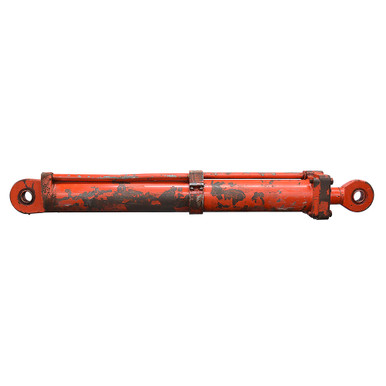

Unused old inventory. Double acting hydraulic cylinder. Numbers on cylinder 20V1055 37562 B363 8658.

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke6.5″ x 52″
  • Barrel Thickness 0.436″
  • Gland Retainer Bolt on gland
  • Pressure3000 PSI
  • Rod Dia. 4″
  • Ports 4 bolt 1-1/4″ code 61 flange size 20
  • Retracted Length76″
  • Gland Face to Rod Pin Center 7″
  • Shpg. 664 lbs.
END MOUNTINGS
  • Rod End Swivel Eye
  • Width 1.98″
  • Pin-Center-To-Swivel Eye-End 3.73″
  • Swivel Eye Width 2.25″
  • Pin Hole 2-1/2″
  • Base End Swivel Eye
  • Width 1.98″
  • Pin-Center-To-Swivel Eye-End 4.05″
  • Swivel Eye Width 2.25″
  • Pin Hole 2-1/2″
