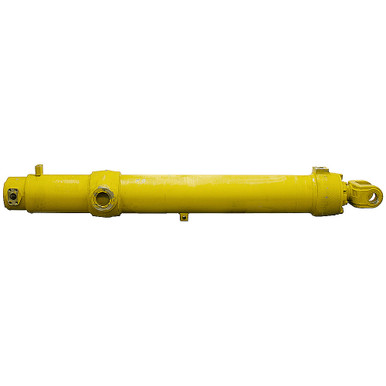

6.5″ x 49.75″ x 3″ Double Acting Hydraulic Cylinder

Description

6.5″ x 49.75″ x 3″ DOUBLE ACTING HYDRAULIC CYLINDER
Unused, old inventory. Welded cylinder with thread-in gland cap and bolt-on wiper. Base end has two 1.25” I.D. openings on 2.75” centers with four 5/8”-18 bolt holes on 3.25” x 3.50” centers. One of the 1.25” openings is the extend port for the cylinder, the other 1.25” opening connects directly to the base end flange pad (1-1/4″ 4 Bolt Flange, Code 61). Pair of steel mounting blocks welded to cylinder body. Base end block measures 2-1/4″ wide x 1″ thick x 1.75″ high with two 1/2″-13 bolt holes on 1-1/4″ centers. Center block measures 3″ wide x 1-1/2″ thick x 1-1/2″ high with 11/16″ hole running through width. Retracted length measured from trunnion pin center to clevis pin center.
