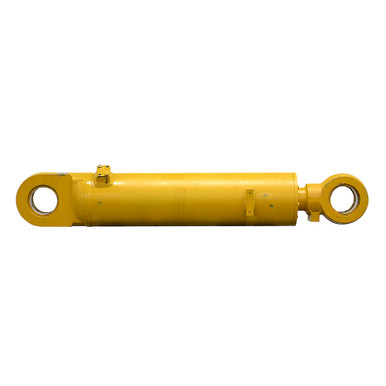

6.5" x 17.5625" x 3.5" Double Acting Hydraulic Cylinder Victor Fluid Power 1214053H93

6.5″ x 17.5625″ x 3.5″ Double Acting Hydraulic Cylinder Victor Fluid Power 1214053H93

Original price was: $599.95.Current price is: $119.99.

SKU: 904046 Category:

Description

6.5″ x 17.5625″ x 3.5″ DA HYDRAULIC CYLINDER
New, VICTOR FLUID POWER model 1214053H93 welded cylinder with bolt-in gland cap.

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke6-1/2″ x 17-9/16″
  • Barrel Thickness3/4″
  • Pressure 3000 PSI max.
  • Rod Dia. 3-1/2″
  • Ports1″ Four-Bolt Flange, Code 61
  • Retracted Length 44-1/4″
  • Shpg. 490 lbs.
END MOUNTINGS
  • Rod End Tang
  • Max Thickness 4-9/16″
  • Pin Center to Tang End 3-3/4″
  • Pin Hole 101mm (3.976″)
  • Base End Tang
  • Max Thickness 4-19/32″
  • Pin Center to Tang End 4-1/16″
  • Pin Hole 101mm (3.976″)
