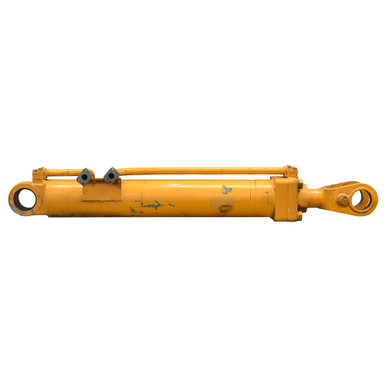

6.27"(160mm) x 37.5"(953mm) x 3.54"(90mm) Double Acting Hydraulic Cylinder Hyundai 31L1-1057

6.27″(160mm) x 37.5″(953mm) x 3.54″(90mm) Double Acting Hydraulic Cylinder Hyundai 31L1-1057

Original price was: $649.95.Current price is: $129.99.

SKU: 904768 Category:

Description

6.27″(160mm) x 37.5″(953mm) x 3.54″(90mm) DA HYD CYL
Unused old inventory. Double acting hydraulic cylinder. HYUNDAI numbers on cylinder 31L1-1057.

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke6.27″(160mm) x 37.5″(953mm)
  • Barrel Thickness 0.402″
  • Gland Retainer Bolt on gland
  • Pressure3000 PSI
  • Rod Dia.3.54″(90mm)
  • Ports 4 bolt 1″ code 61 flange size 16
  • Retracted Length62.25″
  • Gland Face to Rod Pin Center 12″
  • Shpg. 453 lbs.
END MOUNTINGS
  • Rod End Clevis
  • Outside Width 7.14″
  • Inside Width 4.23″
  • Throat Depth 7.86″
  • Pin Hole 3.74″(95mm)
  • Base End Tang
  • Width 3.56″
  • Pin-Center-To-Tang-End 3.2″
  • Pin Hole 3.74″(95mm)
