52.21:1 SIZE 67 2 HP INLINE GEAR REDUCER
Brand new, World Wide Electric helical inline speed reducer. Cast iron housings. Drop-in replacement for most major inline reducer brands. Gearbox flanges are designed to accept NEMA C-Face electric motors.
SPECIFICATIONS
- Model Number WINL67-50/1-145TC
- Box Size 67
- Stages 3
- Nominal Ratio 50:1
- Actual Ratio 52.21:1

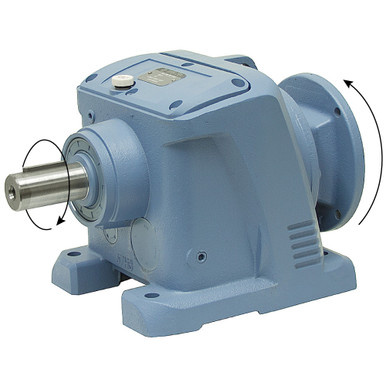

- Input Rotation Reversible, see shaft relation in above photo
- Output RPM @ 1800 RPM Input 34 RPM
- Input Hp 2 Hp Max
- Output Torque 3400 in.-lbs. Max
- Over-Hung Load 1480 lbs. Max
- Service Class I
- Motor Mount 145TC
- Output Shaft 1.375″ dia. x 2.76″ long keyed, 5/16″ wide keyway, shaft end tapped 1/2″-13
- Base Mount Four 0.55″ holes on 7.68″ x 5.91″ centers
- Shpg. 73 lbs.
