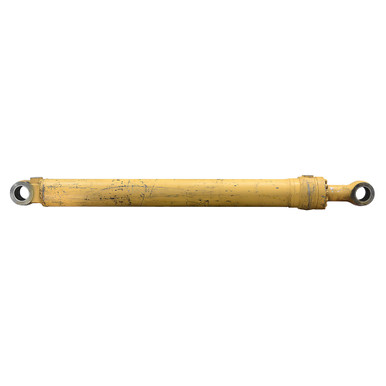

5"(127mm) x 50.5"(1282.7mm) x 3.55"(90mm) Double Acting Hydraulic Cylinder

5″(127mm) x 50.5″(1282.7mm) x 3.55″(90mm) Double Acting Hydraulic Cylinder

Original price was: $449.95.Current price is: $89.99.

SKU: 902686 Category:

Description

5″(127mm) x 50.5″(1282.7mm) x 3.55″(90mm) DA HYDRAULIC CYL
Unused old inventory. Double acting hydraulic cylinder.

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke5″(127mm) x 50.5″(1282.7mm)
  • Barrel Thickness 0.479″
  • Gland Retainer Bolt on gland
  • Pressure3000 PSI
  • Rod Dia. 3.55″(90mm)
  • Ports 4 bolt 3/4″code 61 flange size 12
  • Retracted Length73.625″
  • Gland Face to Rod Pin Center8.5″
  • Shpg. 457 lbs.
END MOUNTINGS
  • Rod End Tang
  • Thickness, Max 3.78″
  • Pin-Center-To-Tang-End 2.55″
  • Pin Hole 3.17″(80mm)
  • Base End Tang
  • Thickness, Max 3.8″
  • Pin-Center-To-Tang-End 2.58″
  • Pin Hole 3.17″(80mm)
