Description

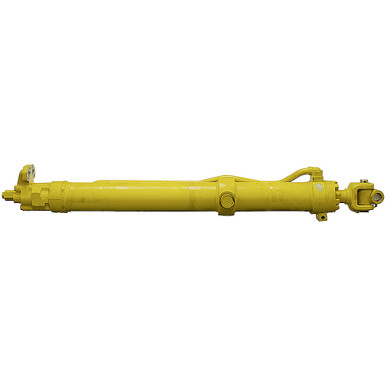

5″ x 43″ x 2.5″ DA HYDRAULIC CYLINDER
New. Welded cylinder with thread-in gland cap and bolt-on wiper. Removable crosstube assembly mounted to rod end clevis, both have 1-1/2″ pin holes. Crosstube pin hole offset 90° from clevis pin holes. Cushion valve at end of retract. P/N 7316738 R.H.
| SPECIFICATIONS |
- Double Acting
- Bore x Stroke5″ x 43″
- Barrel Thickness1/4″
- Pressure 2500 PSI max.
- Rod Dia. 2-1/2″
|
- Ports1″ Four Bolt Flange, Code 61
- Retracted Length 28″
- Shpg. 350 lbs.
|
| END MOUNTINGS |
|
- Rod End Clevis/Crosstube Assembly
- Clevis
- Outside Width 5-1/4″
- Inside Width 3-1/16″
- Throat Depth 3-1/2″
- Pin Hole 1-1/2″
- Crosstube
- Width 3-7/8″
- O.D. 2-15/16″
- Pin Hole 1-1/2″
|
- Trunnion Male
- Pin Outside Width 11″
- Pin Inside Width 8″
- Pin Center to Rod Pin Center 28″
- Pin Center to Base End 42-1/2″
- Pin Diameter 2-1/2″
|
