Sale!

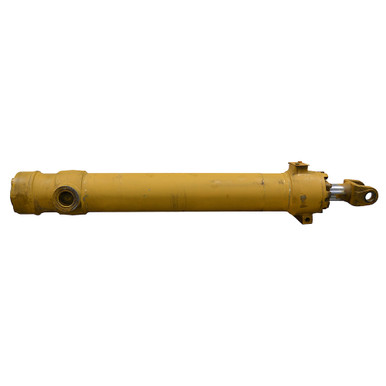

5" x 33" x 2.5" Double Acting Hydraulic Cylinder 73072560

5″ x 33″ x 2.5″ Double Acting Hydraulic Cylinder 73072560

Original price was: $349.95.Current price is: $69.99.

SKU: 902512 Category:

Description

5″ x 33″ x 2.5″ DOUBLE ACTING HYDRAULIC CYLINDER
Unused old inventory. Double acting hydraulic cylinder. Model 73072560

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke 5″ x 33″
  • Barrel Thickness 0.246″
  • Gland Retainer Threaded in gland
  • Pressure 3000 PSI max.
  • Rod Dia. 2.5″
  • Ports 4 bolt 1″ code 61 flange size 16
  • Retracted Length 41.75″
  • Gland Face to Rod Pin Center 5.75″
  • Shpg. 224 lbs.
END MOUNTINGS
  • Rod End Clevis
  • Outside Width 4.68″
  • Inside Width 3.1″
  • Throat Depth 2.79″
  • Pin Hole 1-1/4″
  • Base End Female Trunnion
  • Pin Outside/Inside Width 8″ / 6.5″
  • Pin-Center-To-Rod Pin Center 41.75″
  • Pin Center To Base End 7.875″
  • Pin Diameter 2″
